556TID-HWD

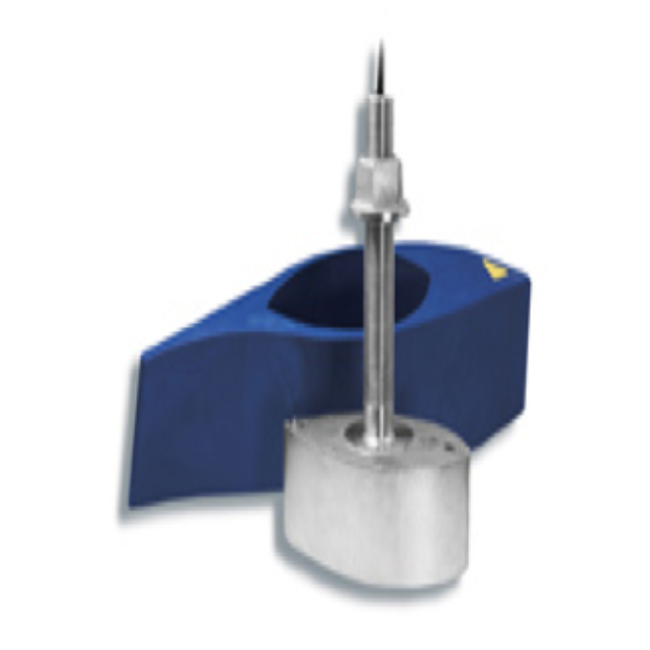

Stainless Steel Wide Beam Thru-Hull Transducer with Temp and Fairing Block, 1 kW (10-Pin)

Airmar SS270W Housing Style Transducer

The 556TID-HWD is the industry’s first 1 kW twin wide-beam, 50 kHz and 200 kHz dual-frequency transducer. This unique design gives extra beamwidth to spot more fish in shallow to mid-water depths. This thru-hull provides four times the beamwidth at 200 kHz than other high-performance transducers. This means marking game fish or bait in a larger area, thus increasing the catch.

Since the beamwidths are the same at both frequencies, a split-screen fishfinder display will clearly show the same water column and bottom coverage. Fish will also appear as arches of the same size and position. More fish will be marked while trolling or underway. At anchor, see which direction the baits and chum are flowing in the current. The custom-fit High-Performance Fairing will give crystal-clear imaging at speeds up to 30 knots (34 MPH). And since the 556TID-HWD fits into the popular B260 fairing pocket, it’s easy to upgrade existing installations.
